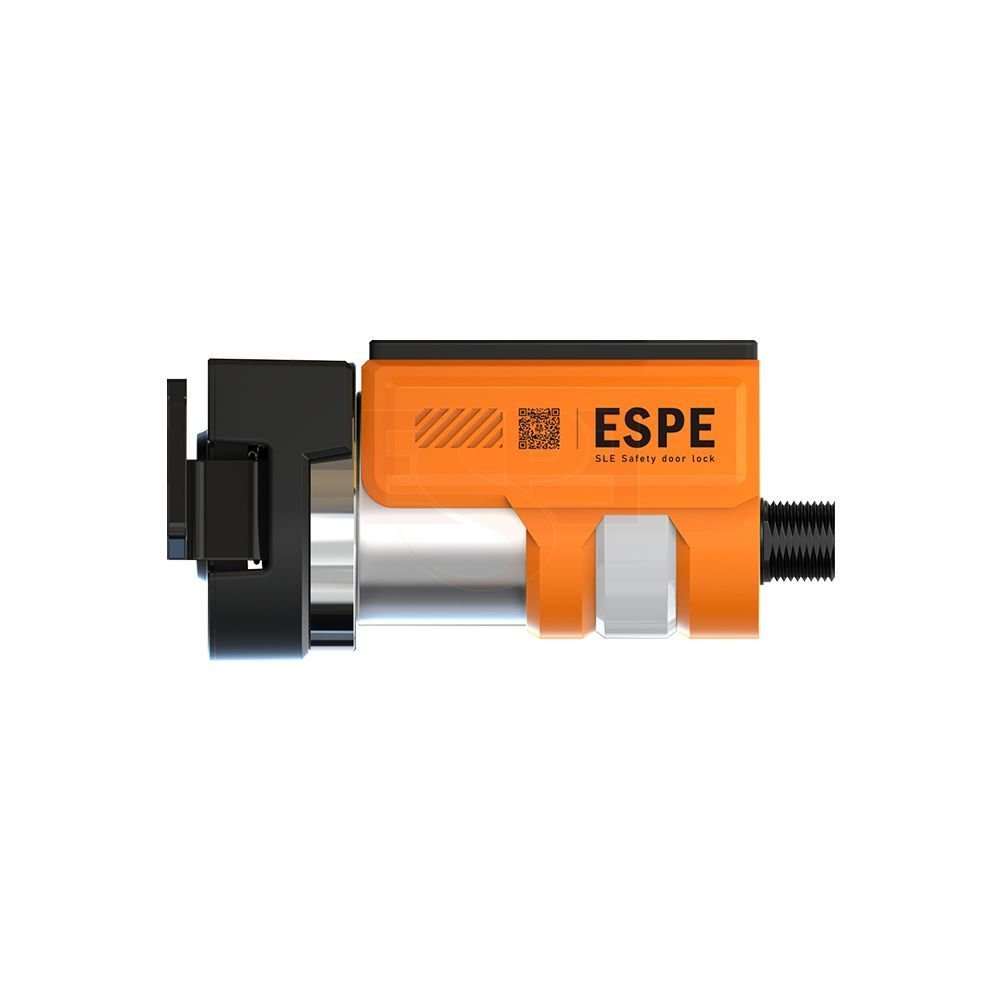

| Parameter | Specification |
|---|---|
| General & Performance | |
| Type / Features |
Hinged door, Miniature size, M12 connector, Standard mode / Advanced mode |
| Working distance |
Sao (Off-On): 4mm Sar (On-Off): 4mm |
| Response time |
Lock → Release: 200ms Release → Lock: 200ms Detect → Non-detect: 20ms + 2ms * (cascading amount – 1) |
| Control Output | |
| Output method | Transistor output * 2 |
| Max. load current | 150mA |
| Residual voltage (during ON) |
2.5V max. (5m cable) 3.5V max. (31m cable) |
| OFF stage voltage |
2.0V max. (5m cable) 3.0V max. (31m cable) |
| Leakage current | 0.5mA max. |
| Max. capacitive load | 4uF |
| Load wiring resistance | 2.5Ω max. |
| AUX Output (Non-safety) | |
| Output type | Transistor |
| Max. load current | 50mA |
| Residual voltage (when ON) |
2.5V max. (5m cable) 3.5V max. (31m cable) |
| External Input (Short circuit current) | |
| Safety input | Approx. 1.5mA * 2 |
| Lock control input (OSSD switching) | Approx. 5mA |
| Reset / EDM input | Approx. 5mA (only for advanced function) |
| EDM option input | Approx. 2.5mA (only for advanced function) |
| Power Supply & Protection | |
| Power supply | DC 24V ±10% (ripple P-P 10% Class 2) |
| Power consumption | < 5W |
| Circuit protection | Reverse current protection, short-circuit protection and surge protection for each output |
| Environmental Resistance & Standards | |
| Enclosure rating | IP67 |
| Ambient temperature | -10 ~ 55°C (No freezing) |
| Storage temperature | -25 ~ 70°C (No freezing) |
| Relative humidity | Operating & Storage: 5 ~ 95% RH |
| Vibration resistance | 10 ~ 55Hz, double amplitude 2.0mm, 5 minutes in each of X, Y, and Z direction (IEC 60947-5-3) |
| Shock resistance | 30G in X, Y, Z directions 6 times each axis (IEC 60947-5-3) |
| Applicable standards (safety) |
EN ISO 13849-1:2015 (PL e, Category 4), IEC 60947-5-3, EN 60947-5-3 |
