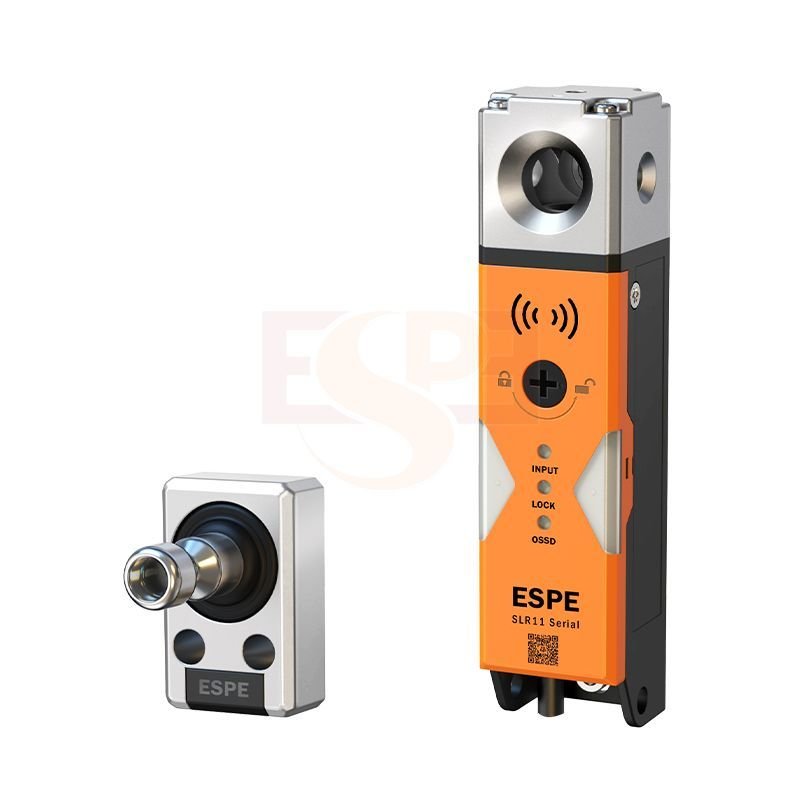

| Parameter | Specification |
|---|---|
| Standard | EN ISO 13849-1 (Category 4/PL e); EN ISO 14119; EN IEC 60947-5-2; EN IEC 60947-5-3 |
| Certificate | CE |
| Locking model | Power to lock / Power to release |
| Response time | Lock-unlock < 250ms Unlock-lock < 300ms |
| Lock holding force Fzh | ≥ 2000N |
| Lock bolt insertion deviation | ≤ 2mm |
| Mechanical endurance | > 1 million times (door operating speed 1m/s) |
| Operating frequency | 1Hz |
| Minimum radius of revolving door | ≥ 250mm |
| Manual unlocking | Front, Rear |
| Safety Output (OSSD) |
Type: NPN*2 / PNP*2 Max load current: < 200mA Residual voltage (ON): < 2.5V (Cable 5m) Voltage when OFF: < 2V (Cable 5m) Leakage current: < 0.5mA Max load capacity: 2 uF Load resistance: ≤ 2.5Ω |
| AUX Output |
Type: NPN*1 / PNP*1 Max load current: 50mA Residual voltage (ON): ≤ 2.5V @50mA |
| External Input |
Safety input: 5mA*2 Reset/ EDM input: About 10mA*1 Locking control input: About 10mA*1 |
| Power supply | Working voltage: DC 24V ±15% Power consumption: 3.6W *1 |
| Protection | Power supply reverse polarity, output short circuit, output reverse polarity protection |
| Housing protection rate | IP65 |
| Ambient temperature | Operating: -20~55℃ (no freezing) Storage: -25~70℃ (no freezing) |
| Ambient humidity | Operating: 5-95%RH Storage: 5-95%RH |
| Vibration resistance | 10~55Hz, double amplitude 2.0mm, 5 minutes each in X, Y and Z directions |
| Shock resistance | 30g, 6 times each in X, Y and Z direction (IEC60947-5-3) |
| Cascade connection | Up to 20 units |
| Restart time | 1.5s |
| Material | Nylon / Zinc alloy / Stainless steel |
